Using LED as indicator warning light.

[Major Softie]

Tim,

Any chance of simplified wiring diagram, series V parallel?

You can draw it in your mind.

Series = Train cars

Parallel = Tuning fork

Or, you can go here: http://en.wikipedia.org/wiki/Series_and ... l_circuits


Series:



Parallel:

[Duane Ausherman]

I would like to mount a small LED in the edge of my /S screen as an indicator warning light.

Does anyone done this before? I seem to remember something about LEDs requiring a resistor in the circuit..........

All advice at a level suitable for some one illiterate in the ways of electricity welcomed.

Charles

Warning light for what? I see no mention of the purpose of this light.

[dougie]

Duane - it blinks when the turn signal blinks.

[Major Softie]

Duane - it blinks when the turn signal blinks.

An indicator light indicator light.

[ME 109]

Paging ME109 to the keyboard please, ME109 to the keyboard!

We're a bit slow in the country.

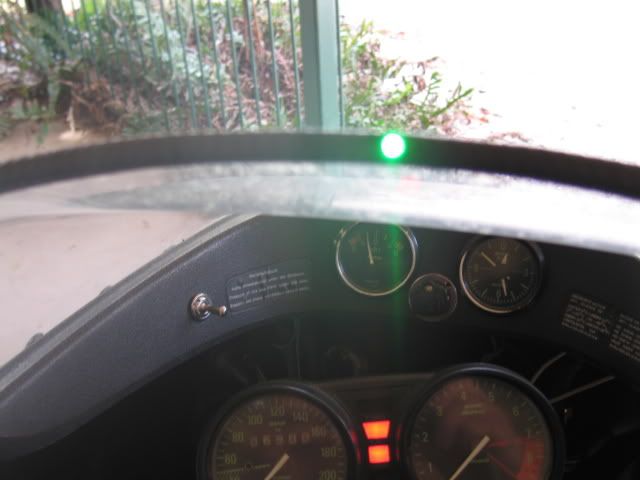

I used a 12 volt led with diodes to create this.

I no longer accidentally leave my indicators on!
I'll have to go and have a look at how I did it.
I told the guy in the electronics store what I wanted to do, he said do this, this, and this.
It worked




And a video

[Deleted User 62]

x

[ME 109]

Head scratches............

From what I can see without digging too deep.

I ran one very thin power wire up one side of the screen to the led, and the ground down the other side.
I did it this way so as to have minimal wiring to hide under the screen trim.

I added a wire from each front indicator positive terminal and put a diode in each wire. Both of those wires were hooked to the + wire going up to the led.

The diodes prevent power going back down the 'other' indicator + wire. Left and right indicators would come on at the same time without the diodes.

The ground wire going down the other side of the screen goes to a ground terminal on the right indicator body.

I needed to cut a little notch in the top of the screen to 'receive' the led body.

Man, if I can do it...............

[ME 109]

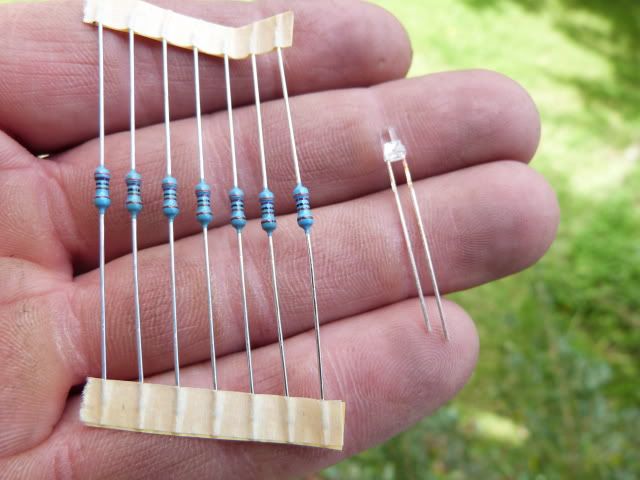

Here are the diodes and the led.

What sort are they?

Er, stripy blue ones and em.......a little clear led.

Just ask the electronics store guy, he'll know.

[SteveD]

Any (dis)connectors to allow the screen to be removed without damaging the circuit?

Jeff, I notice your usual indicator idiot lights aren't working. Is this due to you substituting the system, or were they already kaput?

[ME 109]

Any (dis)connectors to allow the screen to be removed without damaging the circuit?

Jeff, I notice your usual indicator idiot lights aren't working. Is this due to you substituting the system, or were they already kaput?

No dis-connectors, but could be done easily.

The proper idiot light was not working at the time of the vid.
Sometimes it does, sometimes it doesn't.

Only one wire breakage in about 2 years? on the led from vibration of a soldered joint near the screen.
